5-40L PLC Controlled Plastic Barrel Jerrycan Small Hole Automatic Liquid Machine Chemical Cleaning Honey Oil Gear Motor Bottle

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	DAESUM

Minimum Order Quantity:	1

Get Best Price Contact Now

Voltage:	380 V, 415 V	Filling Accuracy:	±0.2FS
Weight:	8000 KG	Filling Volume:	5L, 10L, 18L, 20L, 25L, 30L
Process Material:	SS304/PTFE	Structure Material:	SS304/CS Painted
Filling Mode:	2-speed	Filling Lance:	Short/long
Number Of Lances:	2/4/6	Capacity:	150-300bph
Power Supply:	380V/400V/415V 50Hz/60Hz	Air Supply:	0.4-0.6Mpa
Max Weighing:	40kg	Filling Speed:	150-300bph
Nozzle Type:	Fine And Coarse Filling, Metal Seal Bottom Valve
Highlight:	PLC controlled liquid filling machine , automatic small bottle filler , chemical cleaning gear motor bottle

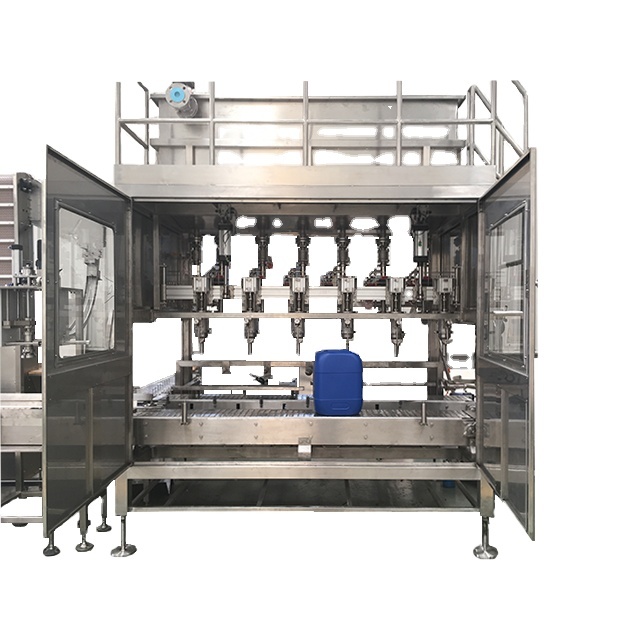

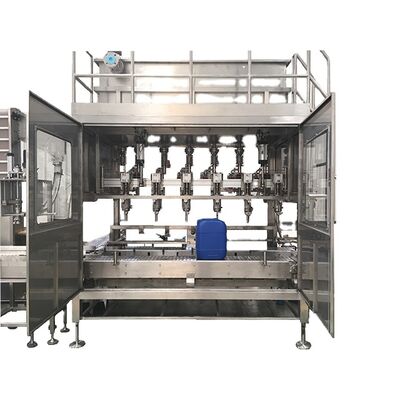

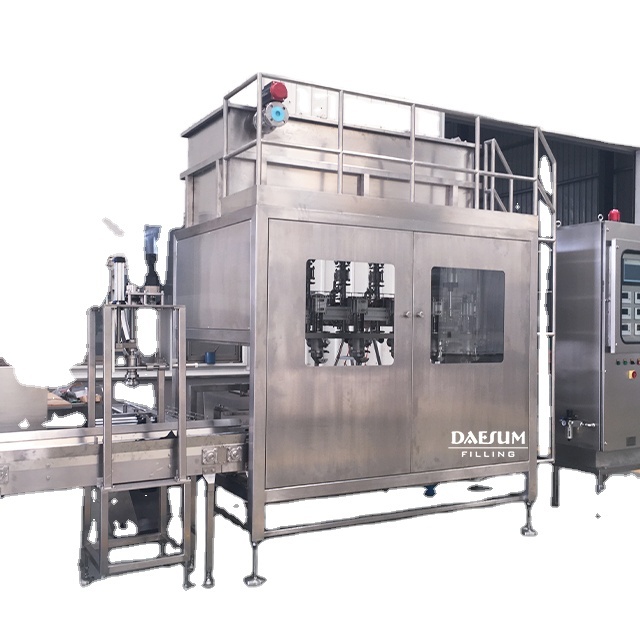

5-40L PLC Controlled Plastic Barrel Jerrycan Small Hole Automatic Liquid Machine

5-40L JerryCan Automatic Chemical Cleaning Liquid Filling Machine

Overview

This quantitative filling machine is designed for efficient liquid filling operations. When operating, simply place empty jerrycans onto the mesh conveyor and start the filling line. The equipment automatically performs the following process:

Empty jerrycans are pushed onto the chain-slat conveyor 4 at a time
Jerrycans are conveyed to the wait filling position (2/4/6 at a time)
Jerrycans are pushed onto the filling scale and tared

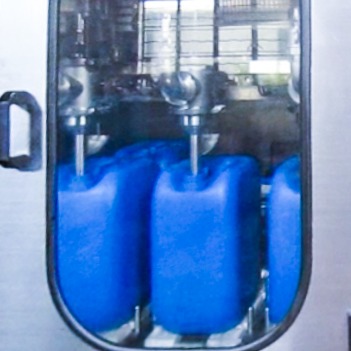

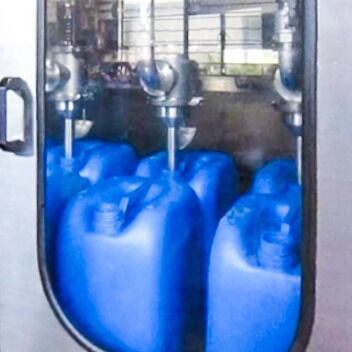

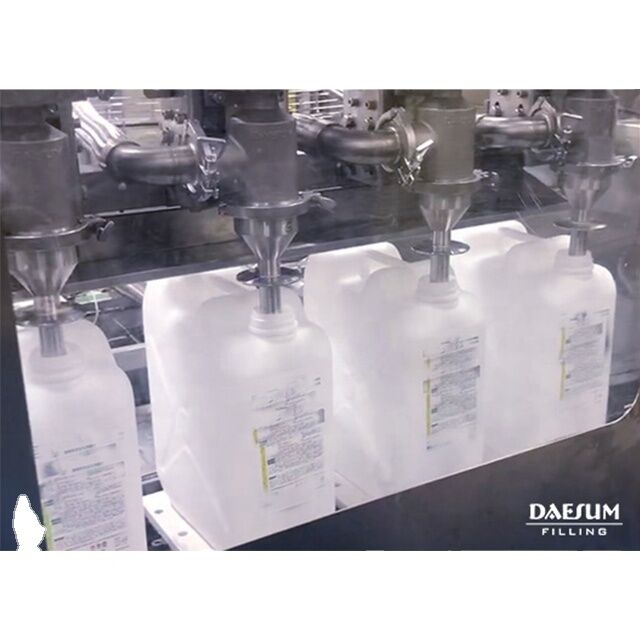

2/4/6 filling nozzles move down into the jerrycans
Nozzle bottom valves open to start immersing coarse and fine filling
Filling nozzles move up slowly with the liquid level
Filling stops when the set value is reached
Filled jerrycans are pushed onto the conveyor while empty ones move into position

Technical Parameters

Max weighing	40kg (single scale)
Filling accuracy	0.2%FS (better than ±30g)
Material	Organic peroxide or other chemicals
Container	Jerrycan
Filling speed	25L Jerrycan 150-300bph
Filling nozzle No.	2 or 4 or 6
Filling method	Immersing filling or above liquid surface filling
Nozzle type	Fine and coarse filling, metal seal bottom valve
Cap placing type	Automatic (optional)
Screw capping type	Automatic (fixed torque) (optional)
Process contact part material	S304
Other equipment material	S304, Q235A (pallet conveyor side plate, pallet magazine, etc.)
