18-40L Jerrycan Fully Automatic Liquid Filling Machine Line 4/6 Lance 400-600bph for Chemicals Oil Electric Motor Gear PLC

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	Daesum

Minimum Order Quantity:	1

Get Best Price Contact Now

Voltage:	220 V, 415 V, 380 V, 440V, 400V	Weight:	8500 KG
Filling Volume:	20L, 25L, 30L	Filling Capacity:	18-40L/container
Filling Speed:	150-450 Containers/hr	Accuracy:	±0.2% FS
Division Value:	10g	Ambient Temperature:	-10℃~40℃
Protection Level:	Better Than IP55	Control Method:	Auto
Maximum Weighing Capacity:	50kg	Product Supply Pressure:	0.5--1Mpa (stable)
Air Supply Pressure:	0.4--0.6Mpa (clean And Dry)	Power Supply:	AC380V, 3 Phase, 50Hz
Consumed Power:	About 3.5kw
Highlight:	18-40L jerrycan filling machine with PLC , automatic liquid filling line for chemicals , electric motor gear oil filling machine

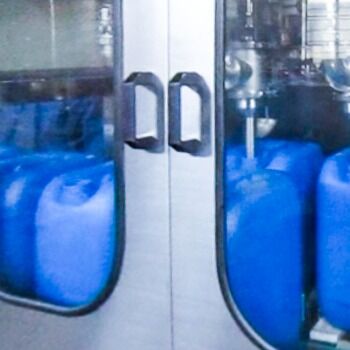

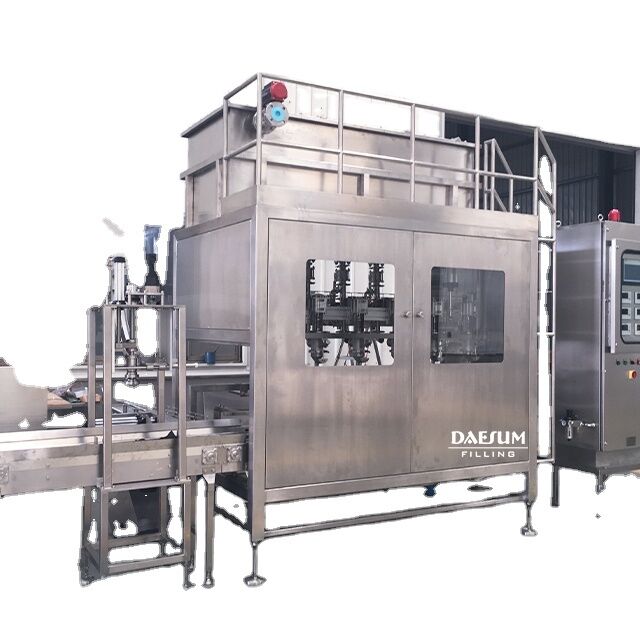

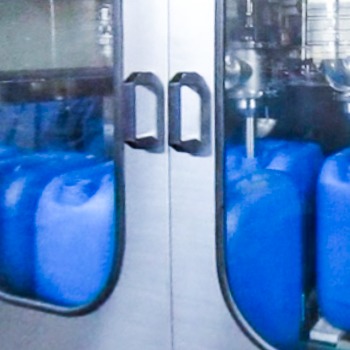

18-40L Jerrycan Fully Automatic Liquid Filling Machine Line

High-performance 4/6 lance automatic filling system with 400-600 containers per hour capacity for chemicals, oils, and lubricants. Powered by electric motor, gear system, and PLC control.

GZ18-4BS Jerry Can 4 Nozzle Engine Oil Filling Machine

Designed specifically for 18L small hole containers, this gravimetric filling system automates the entire process from container infeed to bunging and sealing.

Automated Operation Process

Empty containers placed on chain-board conveyor
Automatic positioning at filling station
Weighing platform lift and tare function
Below-bunghole filling with quick/slow fill cycles
Precision valve closure at target weight
Continuous operation with simultaneous container handling

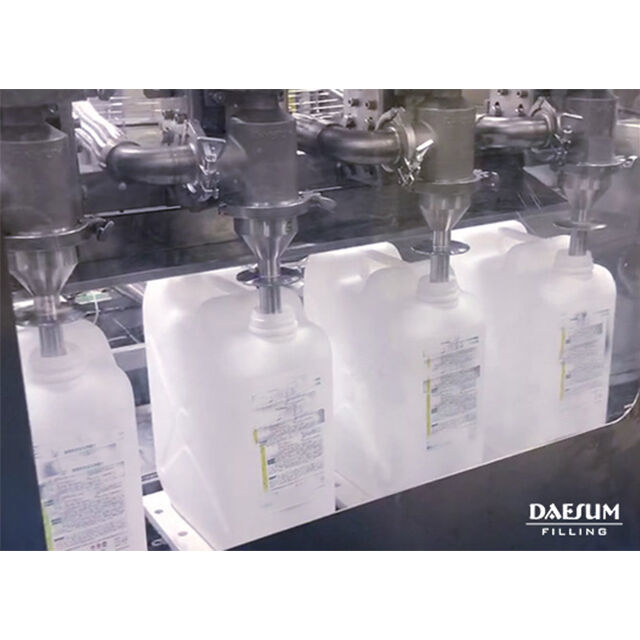

Advanced Filling Nozzle Design

Constructed from S304 stainless steel with below-bunghole filling technology. Features metal-sealed bottom valve, compression-type shaft seal, and UNIQUC air cylinder with anti-drip catch for zero drip operation and superior filling accuracy.

Safety Interlock System

Comprehensive safety features prevent operation unless containers are properly positioned. System automatically retracts nozzles upon contact with container surfaces and prevents valve opening without proper bunghole alignment.

Precision Weighing System

Incorporates TRANSCELL sealed stainless steel load cells with nitrogen purging and IP68 protection. Integrated with TOLEDO or UNIPLUS weighing instruments for real-time weight monitoring and control.

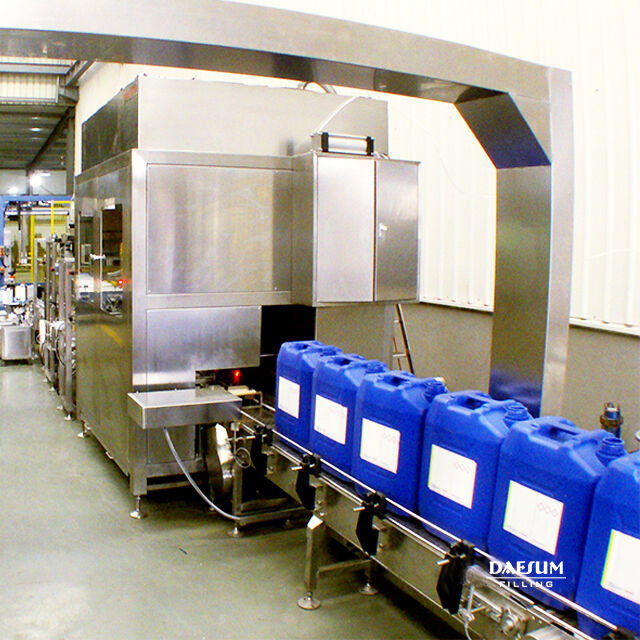

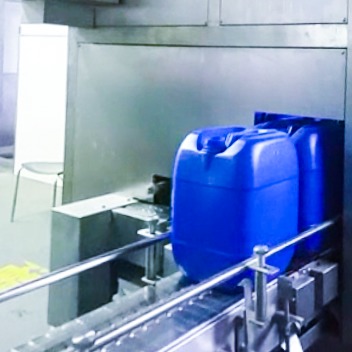

Conveyor System Configuration

Empty cans infeed chain-board conveyor
Weighing and filling chain-board conveyor
Filled cans outfeed chain-board conveyor
Filled cans undriven roller conveyor
Adjustable length and 600mm height (customizable)
Gear motor driven conveyors for reliable operation

Technical Specifications

Maximum Weighing Capacity	50kg
Filling Capacity	15-40L/container
Division Value	10g
Filling Speed	360-400 containers/hour
Accuracy Level	0.2-0.3% FS (dynamic)
Working Ambient Temperature	-10℃ to 40℃
Product Supply Pressure	0.5-1Mpa (stable)
Air Supply Pressure	0.4-0.6Mpa (clean and dry)
Power Supply	AC380V, 3 phase, 50Hz
Consumed Power	Approximately 3.5kW
Control Method	Auto/manual operation by adjusting option switch
Protection Level	Better than IP55
Filling Container	18-40L container (tin/can/jerrycan)
Filling Type	Below-bunghole
Filling Product	Engine Oil

Optional Peripheral Equipment

Palletizing Systems

Available in manual, machinery, or robotic configurations. Automated pallet handling with magazine system for continuous operation and forklift-ready positioning.

Capping Machine

Pneumatic lid capping system for automatic sealing and anti-fake lid application on filled containers.

Labeling Machine

Optional dual-side labeling system for applying required labels on container bodies during outfeed process.

Successful Case Studies

18L engine oil filling line for Caltex Pty., Ltd.
18L fully automatic 4-nozzle engine oil filling line for British Petroleum (BP) Shanghai Pudong Factory
Engine oil filling line for Sinopec Shanghai Branch Blending Factory No.1
