18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic

18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic
Basic Information
Place of Origin: Shanghai, China
Brand Name: Daesum
Certification: ISO9001 ISO45001 ISO14001
Minimum Order Quantity: 1
Get Best Price Contact Now
Voltage: 380V 50Hz Weight: 8000 KG
Filling Volume: 5L, 10L, 18L, 20L, 25L, 30L, 40L Filling Capacity: 5-40L/container
Filling Speed: 150-1000bph Filling Accuracy: ±0.2% FS
Division Value: 10g Ambient Temperature: -10℃~40℃
Filling Nozzle: 2-8 Nozzles Filling Type: Below-bunghole / Below-surface Filling
Maximum Weighing Capacity: 50kg Product Supply Pressure: 0.5--1Mpa
Air Supply Pressure: 0.4--0.6Mpa Power Supply: AC380V, 3 Phase, 50Hz
Consumed Power: About 5kw
Highlight:

18-40L electric chemical filling machine

,

automatic jerry can palletizing line

,

plastic bottle motor oil filler

GZ18-4BS 40L 4-Head Automatic Jerry Can Filling Machine

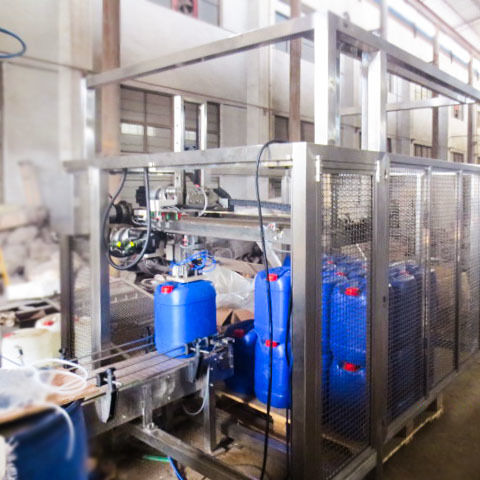

This gravimetric filling system is engineered for precise chemical liquid filling of 18-40L containers with small bungholes. The automated process includes container infeed, positioning, quick/slow filling with weighing, outfeed, and bunging/sealing operations.
Automated Filling Process
Empty containers are placed on the chain-board conveyor and automatically processed through three stations: wait-filling, weighing/filling, and outfeed. Four containers are handled simultaneously for maximum efficiency.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 0 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 1

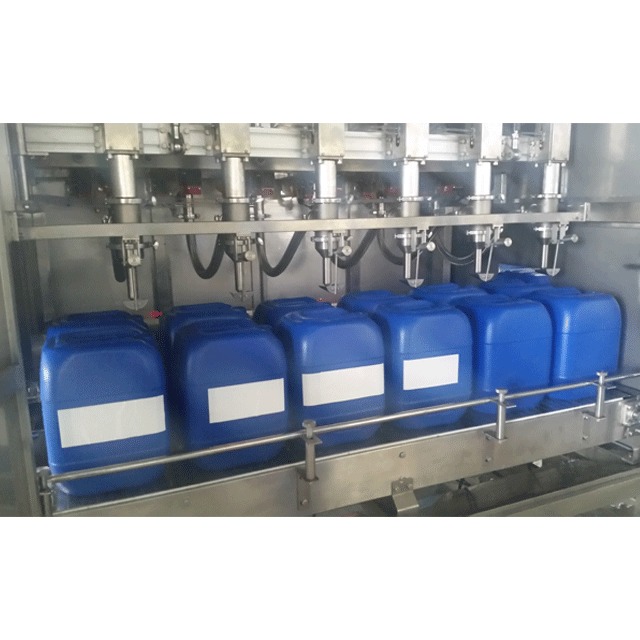

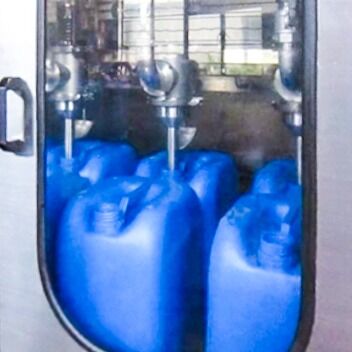

Precision Filling Nozzle System
Constructed from S304 stainless steel, the below-bunghole filling nozzles feature metal-sealed bottom valves, compression-type shaft seals, and anti-drip catch mechanisms to ensure zero leakage and exceptional filling accuracy.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 2 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 3
Safety Interlock System
Advanced safety features prevent operation when containers are improperly positioned. The system automatically retracts nozzles upon contact with container surfaces and only initiates filling when proper alignment is achieved.
High-Precision Weighing System
Utilizes TRANSCELL sealed stainless steel load cells with nitrogen purging and IP68 protection. Real-time weight monitoring is provided through TOLEDO or UNIPLUS weighing instruments integrated with control cabinets.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 4 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 5

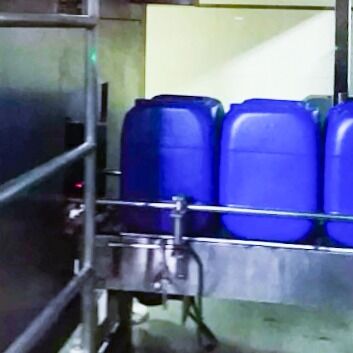

Conveyor System
Five conveyor sections ensure smooth material handling: empty cans infeed, wait-filling, filled cans outfeed, sealing chain-board, and undriven roller conveyor. All feature adjustable lengths and standard 600mm height.
Technical Specifications
Maximum Weighing Capacity 50kg
Filling Capacity 18-40L/container
Division Value 10g
Filling Speed 350-400 containers/hour
Accuracy Level 0.2-0.5% FS (dynamic)
Working Temperature -10℃ to 40℃
Product Supply Pressure 0.5-1Mpa (stable)
Air Supply Pressure 0.4-0.6Mpa (clean and dry)
Power Supply AC380V, 3 phase, 50Hz
Power Consumption Approximately 5kW
Control Method Auto/manual operation
Protection Level Better than IP55
Compatible Containers 18-40L containers (tin/can/jerrycan)
Filling Type 2 nozzle, below-bunghole
Suitable Products Chemical liquids, oils, paints, and similar substances
Optional Peripheral Equipment
Palletizing Systems
Choose from manual, mechanical, or robotic palletizing solutions. Automated systems include pallet magazine functionality for continuous operation.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 6 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 7 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 8 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 9 18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 10
Capping Machine
Pneumatic lid capping machine provides automatic sealing and anti-counterfeit cap application for filled containers.
Labeling Machine
Optional labeling system applies required identification labels to container bodies during the outfeed process.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 11
Industry Applications
Ideal for chemical processing, lubricant manufacturing, paint production, and other industries requiring precise liquid filling of medium-sized containers.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 12
Container Compatibility
Designed specifically for 18-40L jerry cans, tins, and similar containers with small bunghole configurations.
18-40L Electric Fully Automatic Chemical Liquid Jerry Can Filling Palletizing Wrapping Line 4-6 Head Motor Bearing Oil Plastic 13
