1L-4L Jerrycan Pail Can Tin Fully Automatic 4 Nozzles Chemical Liquid Adhesive Acrylic Resin Ex-proof Filling Machine

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	Daesum

Minimum Order Quantity:	1

Get Best Price Contact Now

Filling Speed:	300-1000bph	Filling Range:	1L-4L
Filling Accuracy:	±0.2%FS	Nozzles Quantity:	4 Nozzles
Material:	S304	Weight:	1500 KG
Power:	380/440V 50/60Hz	Air Pressure:	0.4-0.6Mpa
Maximum Weight:	10kg	Interval:	10g
Filling Type:	Immersing Filling	Filling Products:	Adhesive
Filling Container:	Jerrycan	Core Components:	Motor, PLC, Gear, Bearing, Gearbox, Filling Nozzle
Driven Type:	Electric
Highlight:	1L-4L Jerrycan filling machine , Ex-proof adhesive filling machine , Automatic chemical liquid filling machine

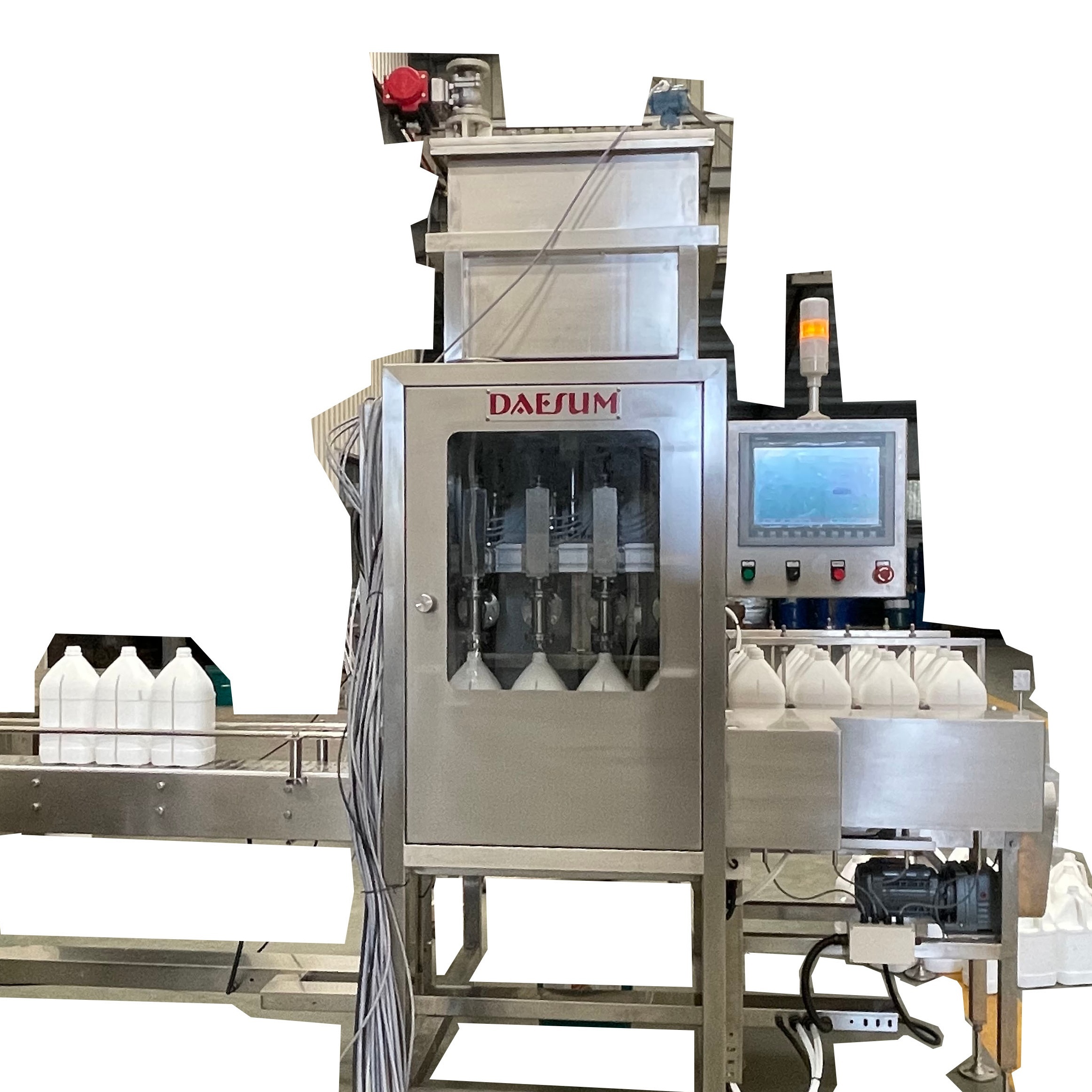

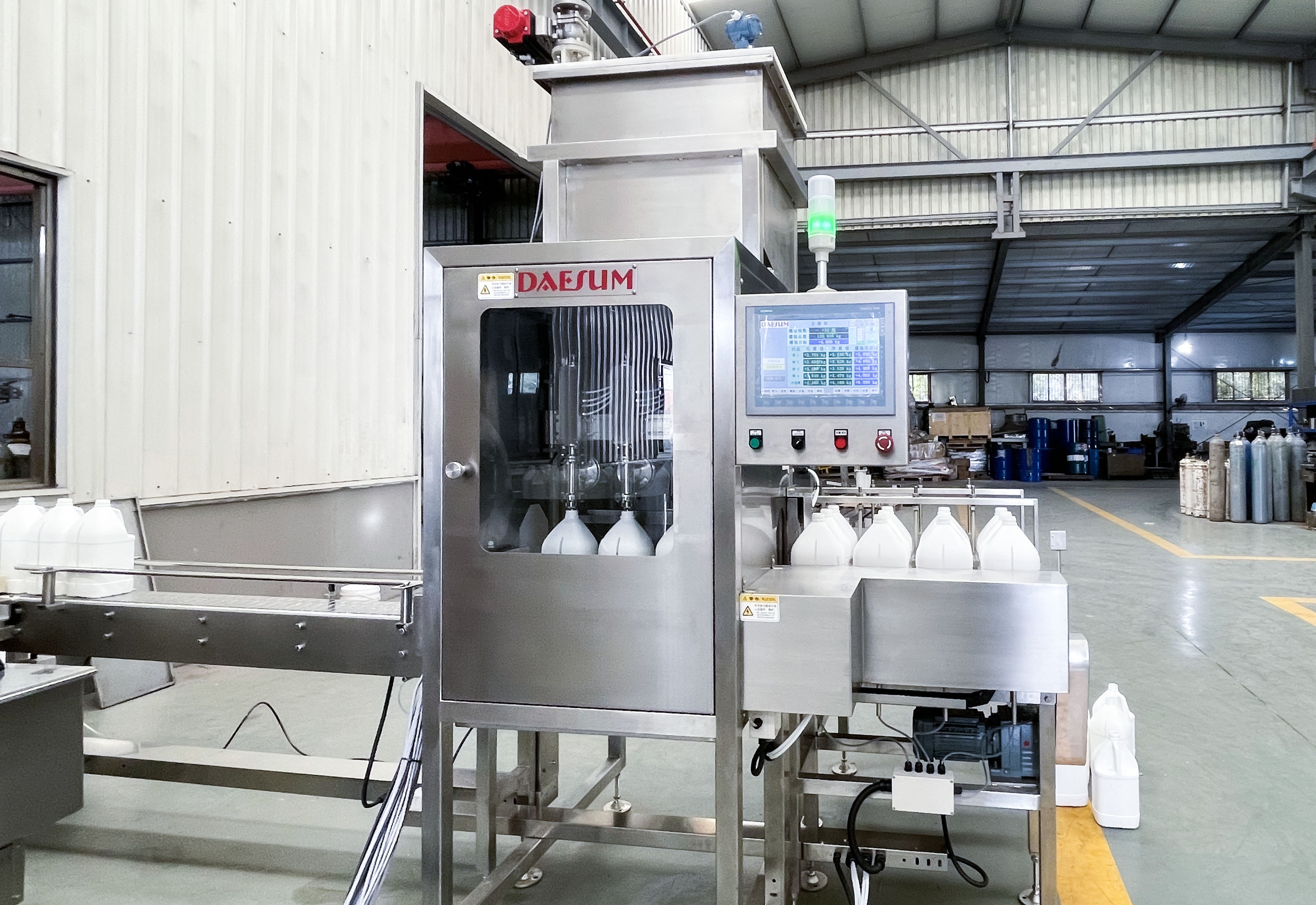

1L-4L Jerrycan Pail Can Tin Fully Automatic 4 Nozzles Chemical Liquid Adhesive Acrylic Resin Ex-proof Filling Machine

1-4L fully automatic Jerrycan Chemical Liquid Filling Machine Ex-proof

Equipment Description

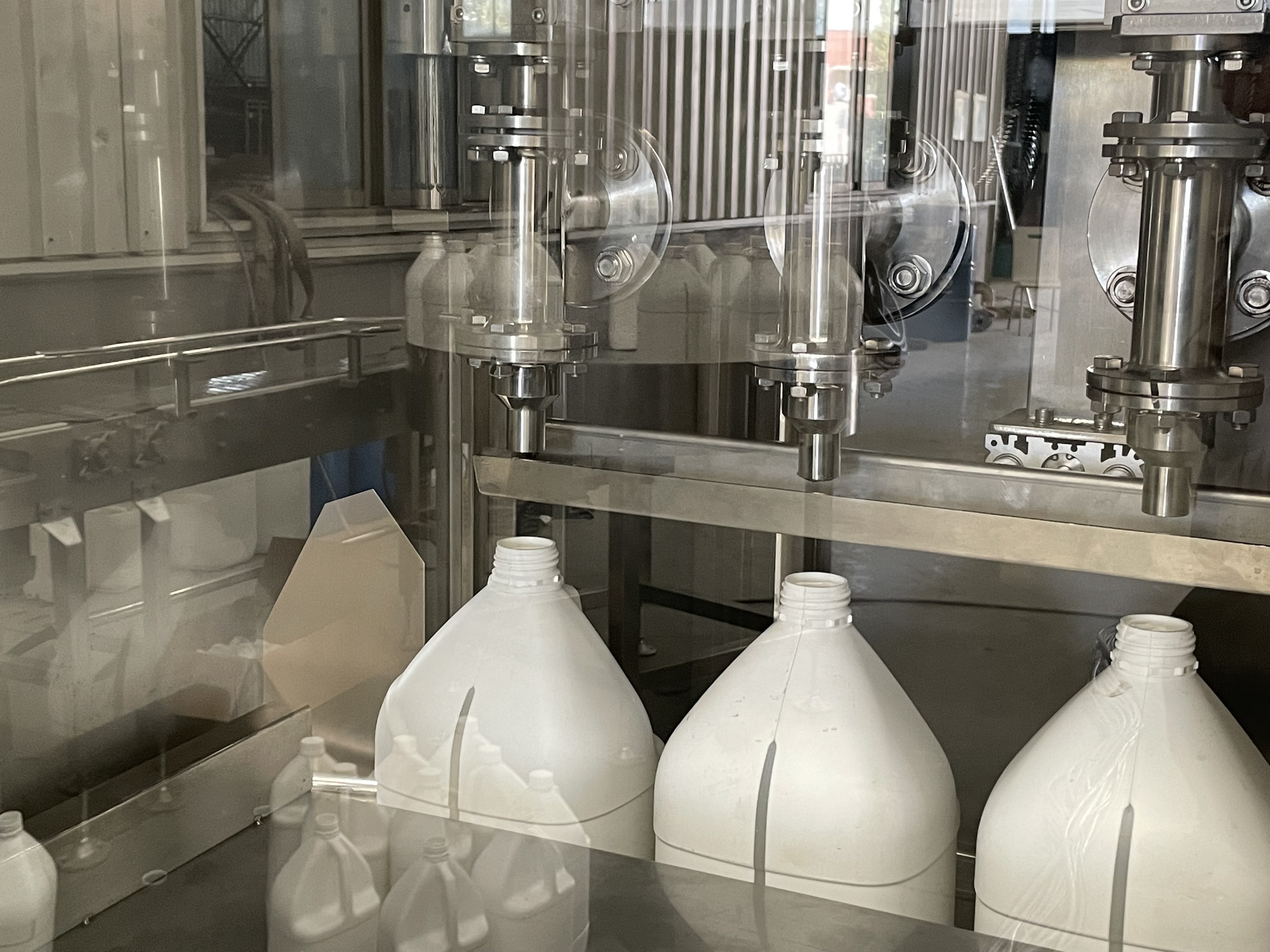

This equipment achieves automatic container matching through mechanical limits, accommodating filling requirements for containers of various specifications. The system can be equipped with a second set of filling guns to enable simultaneous filling of two different materials.

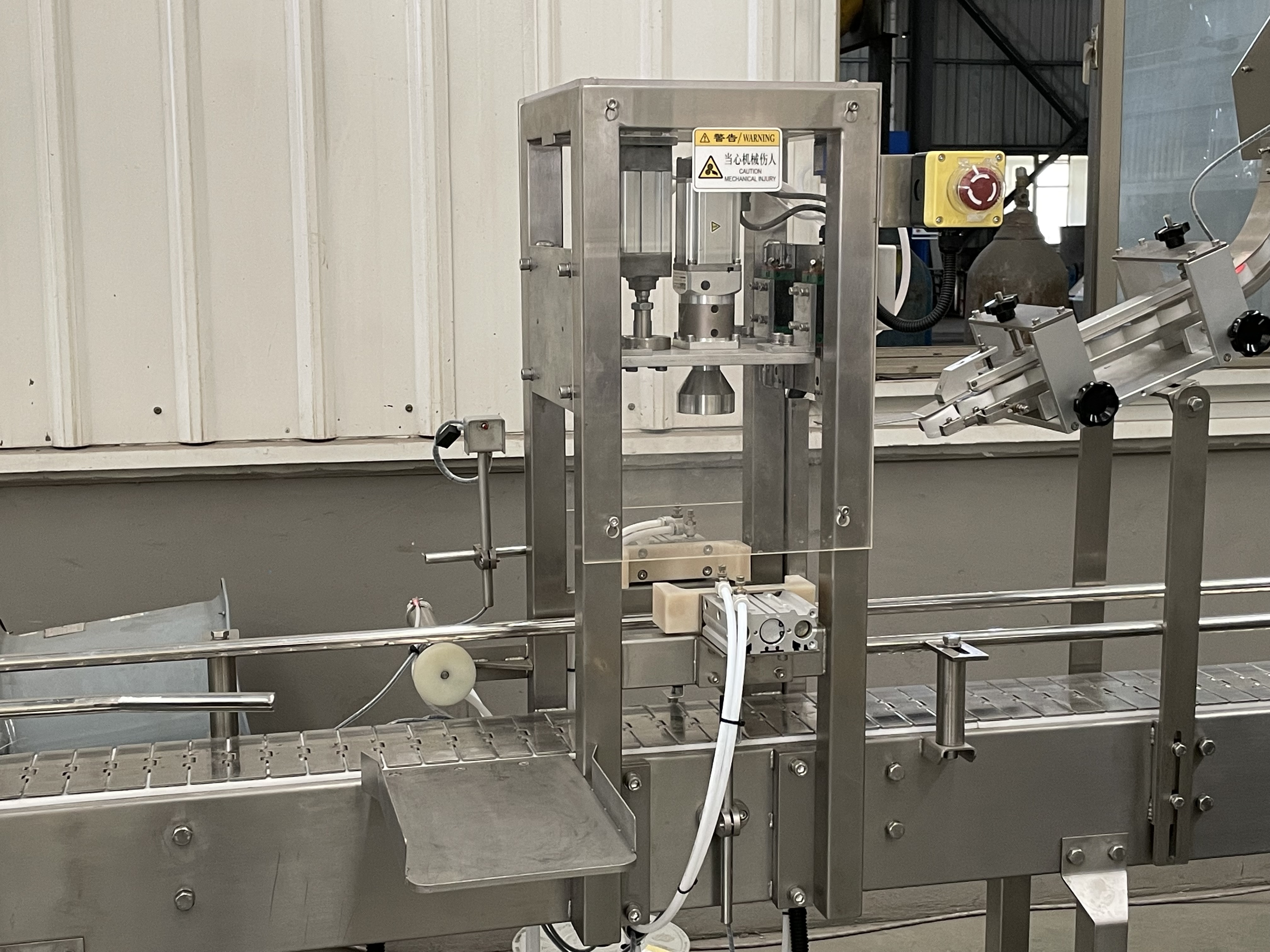

The GZ1-5-C automatic series provides complete automation for manual barrel loading, automatic barrel feeding, automatic quantitative filling, automatic capping, and automatic barrel reloading.

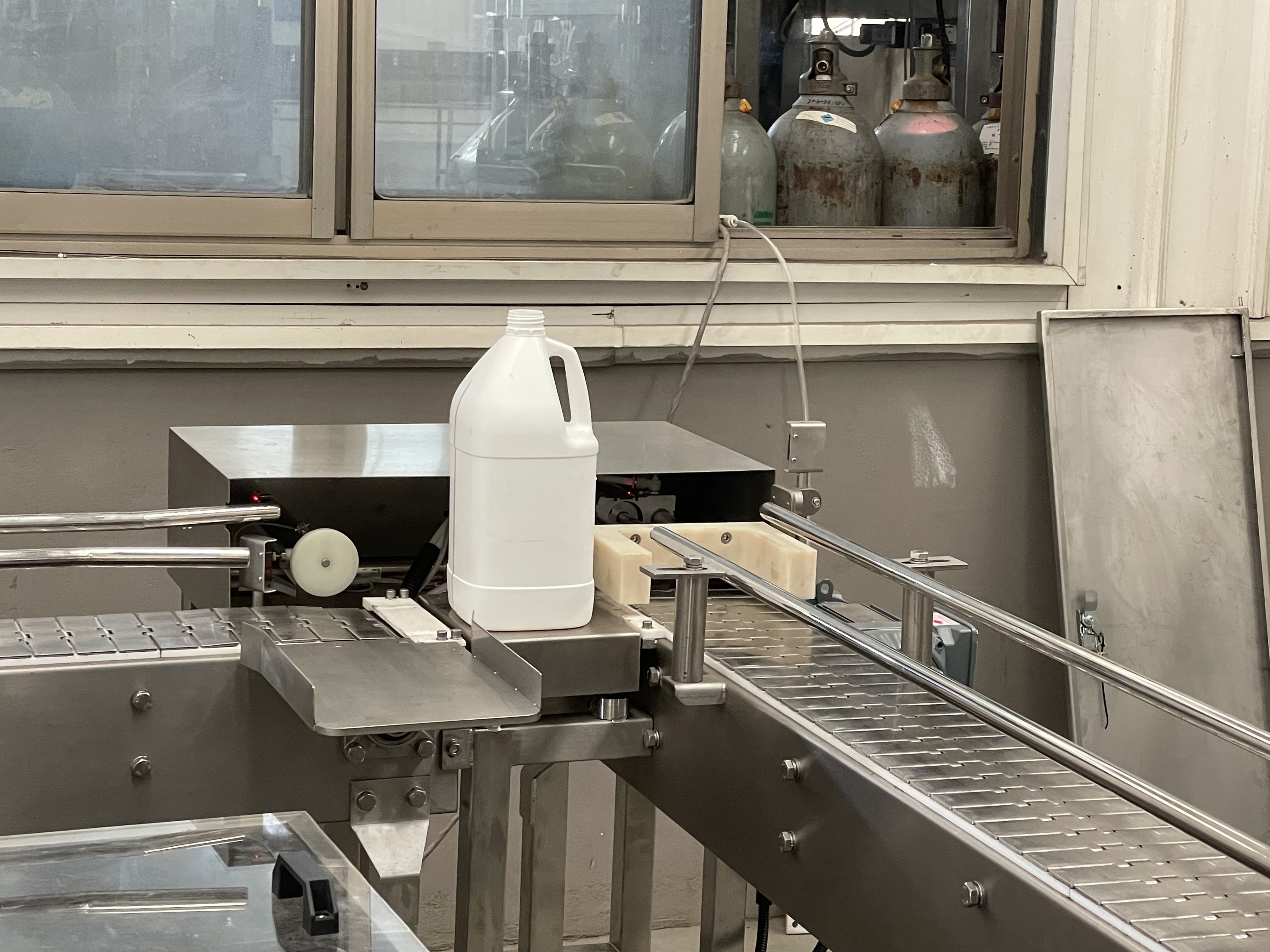

Mesh Conveyor

Can be equipped with mesh conveyor for jerrycan infeed
Driven by gear motor
Infeed capacity: 4 containers at a time

Weight Check Machine

Can be equipped with a weight check machine after filling. Containers with weights outside the tolerance range are automatically eliminated from the production line.

Specifications

Automatic Grade	Semi/Fully Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	10kg
Interval	10g
Material	SS304/SS316
Container	Bottle/Barrel/Jerrycan
Filling range	1-4L
Filling products	Adhesives
Filling speed	600-1200bph

Special Applications

DAESUM specializes in designing and manufacturing special industrial filling, packing, dosing, and mixing production lines, with particular expertise in handling explosive, flammable, toxic, harmful, high-temperature, and viscous materials.

High-Temperature and Corrosive Scenarios

Temperature-resistant and corrosion-resistant materials are used for material-touching parts to ensure machine reliability and durability.

Low Melting Point and Easily Solidified Scenarios

The filling nozzle features heat-keeping design to prevent material cooling and pipeline blockage, ensuring smooth filling operations.

Flammable and Explosive Scenarios

The entire line incorporates explosion-proof and anti-static design, with flow rate controlled by front-end combination valves and world-class explosion-proof electrical equipment to ensure production safety.

Toxic and Harmful Scenarios

Closed filling room design with air extraction system ensures environmentally friendly and healthy filling operations.

Quality Certifications

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

Frequently Asked Questions

When was Daesum first established? Where is our factory located at?

Shanghai Daesum Science Instrument and Equipment Co., Ltd. ("DAESUM"), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

What kind of product do you provide?

1-1000L filling machines, powder packing machines, as well as dosing and mixing production lines.

Can you do explosion proof filling machines?

What kind of service can you provide?

We offer preliminary customized machine design, manufacturing, installation, commissioning, and after-sales service.

Where can you export?

We export worldwide, including the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and more.

If we need maintenance or meet problem, how could you help?

Please call or email us with the problem you encounter, and we will reply as soon as possible. If necessary, we can offer remote access to help solve software problems. Otherwise, we would advise you on spare parts to replace existing broken components.

What kind of package would you use?

For entire machines, we typically ship in independent containers with protective film wrapping and secure fixation. For spare parts, we usually send by air express in boxes.
