300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity

300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity
Basic Information
Place of Origin: Shanghai, China
Brand Name: Daesum
Minimum Order Quantity: 1
Get Best Price Contact Now
Machinery Capacity: 400BPH, 500BPH, 1000BPH, 100BPH, 200BPH Application: Food, Beverage, Chemical, Machinery & Hardware, Liquid
Packaging Type: Cans, Bottles, Barrel Packaging Material: Plastic, Wood
Automatic Grade: Semi-auto Driven Type: Electric
Voltage: 380V/440V Dimension(l*w*h): Adjusted According To Actual Situation
Warranty: 1 Year Key Selling Points: High Productivity
Filling Material: Beer, Milk, Water, Oil, Juice, Other Filling Accuracy: ±0.2%FS
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Core Components: Motor, Other, PLC, Gear, Bearing, Gearbox, Filling Nozzle Product Name: 300ml Small Bottle Liquid Filling Machine
Application: Medical/Chemical/Filling Nozzles No.: 4-6
Certificate: ISO9001 ISO45001 ISO14001 Bottle Type: Small Bottle
Capacity: 800-1000bph Material: S304 S316 PTFE
Control: PLC+ Touch Screen After-sales Service Provided: Online Support
Type: Filling Machine Condition: New
Showroom Location: None Warranty Of Core Components: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction Works , Food & Beverage Shops, Other Weight: 300 KG
Highlight:

300ml semi-automatic bottle filling machine

,

small bottle filling machine 1000bph

,

800-2000bph capacity bottle filler

300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 0
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 2

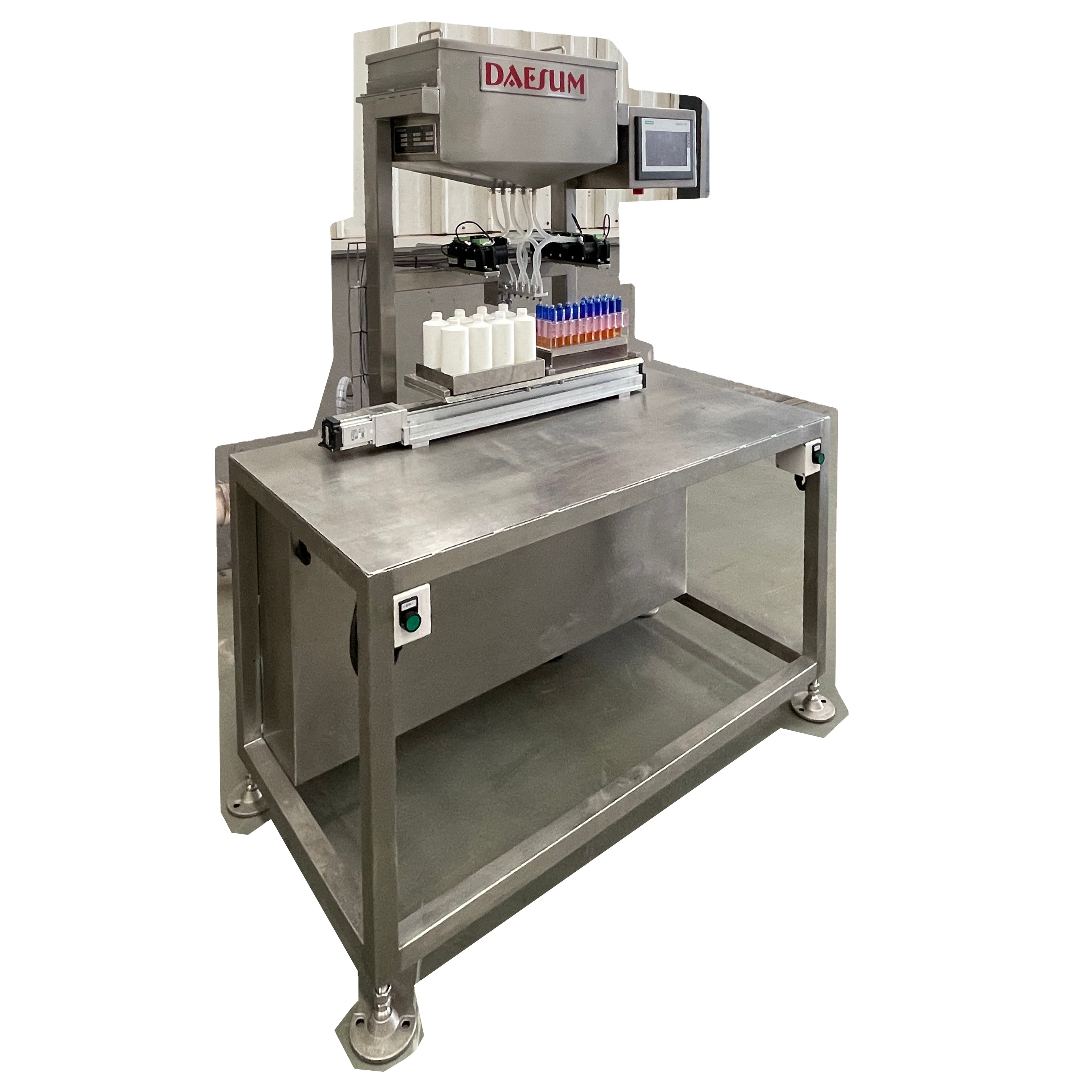

300ML Small Bottle semi-auto Liquid Filling Machine
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 4
Equipment Description

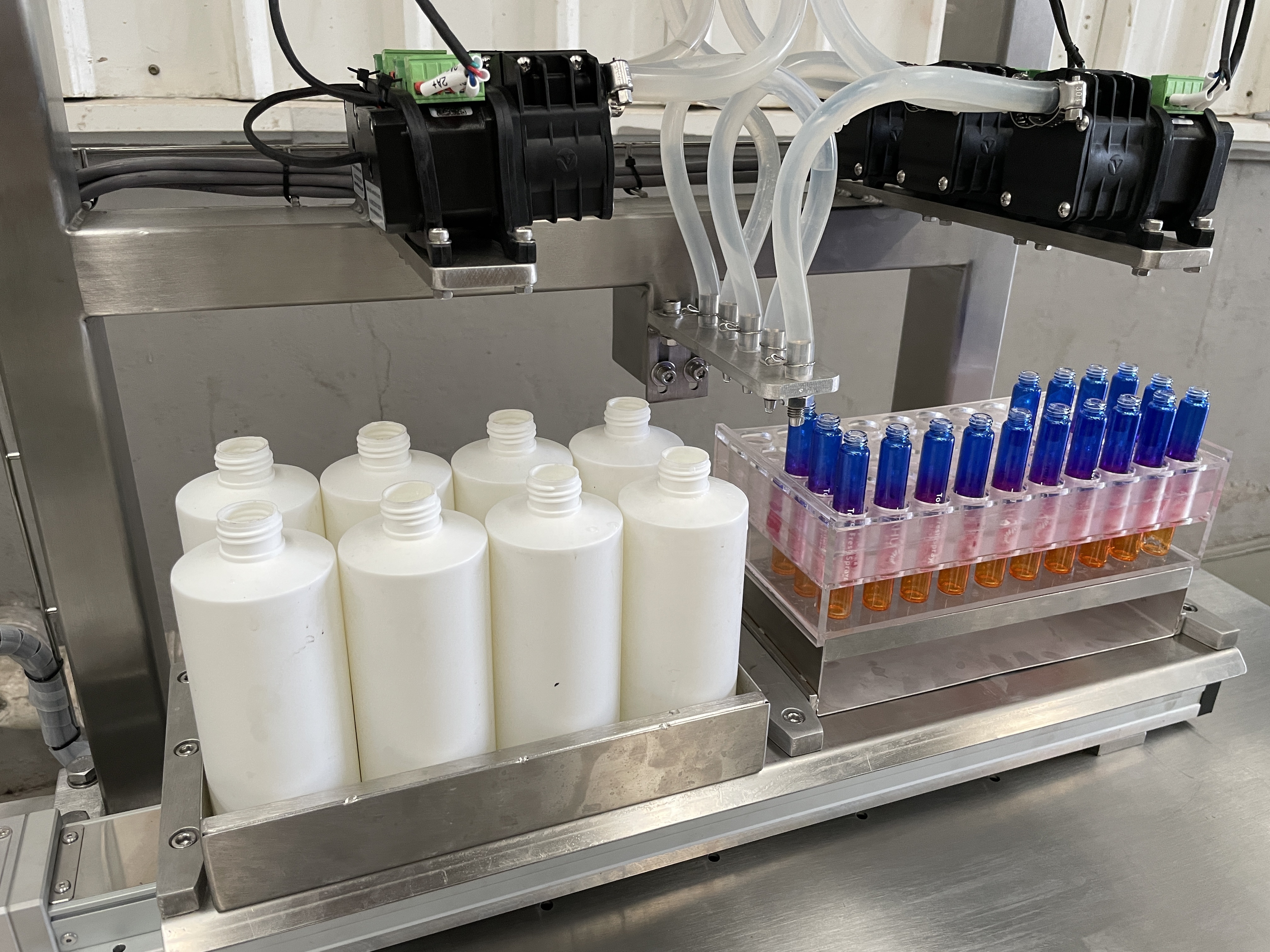

GZ1-4B semi auto filling machine is able to realize the automation of manual bottle tray upload, auto bottle tray infeed, auto peristaltic pump filling, and manual bottle tray unload after entire tray filling completed. The machine realizes auto positioning by mechanically stopping the tray at particular position. After first roll filled, the tray will move one step forward for the next roll to be aligned with the nozzles.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 6
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 8

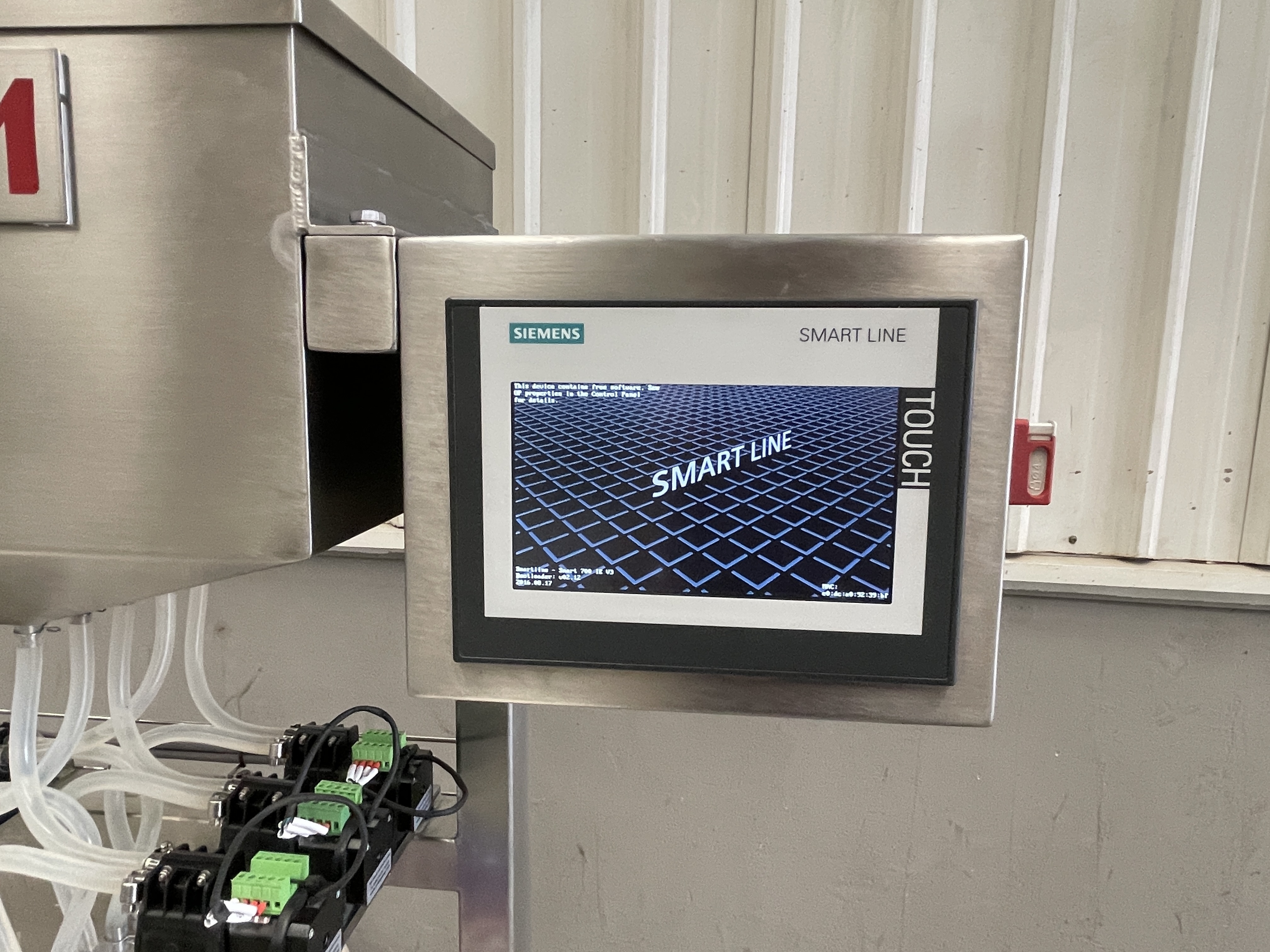

The machine is equipped with a Siemens Smart series touch screen for operation.

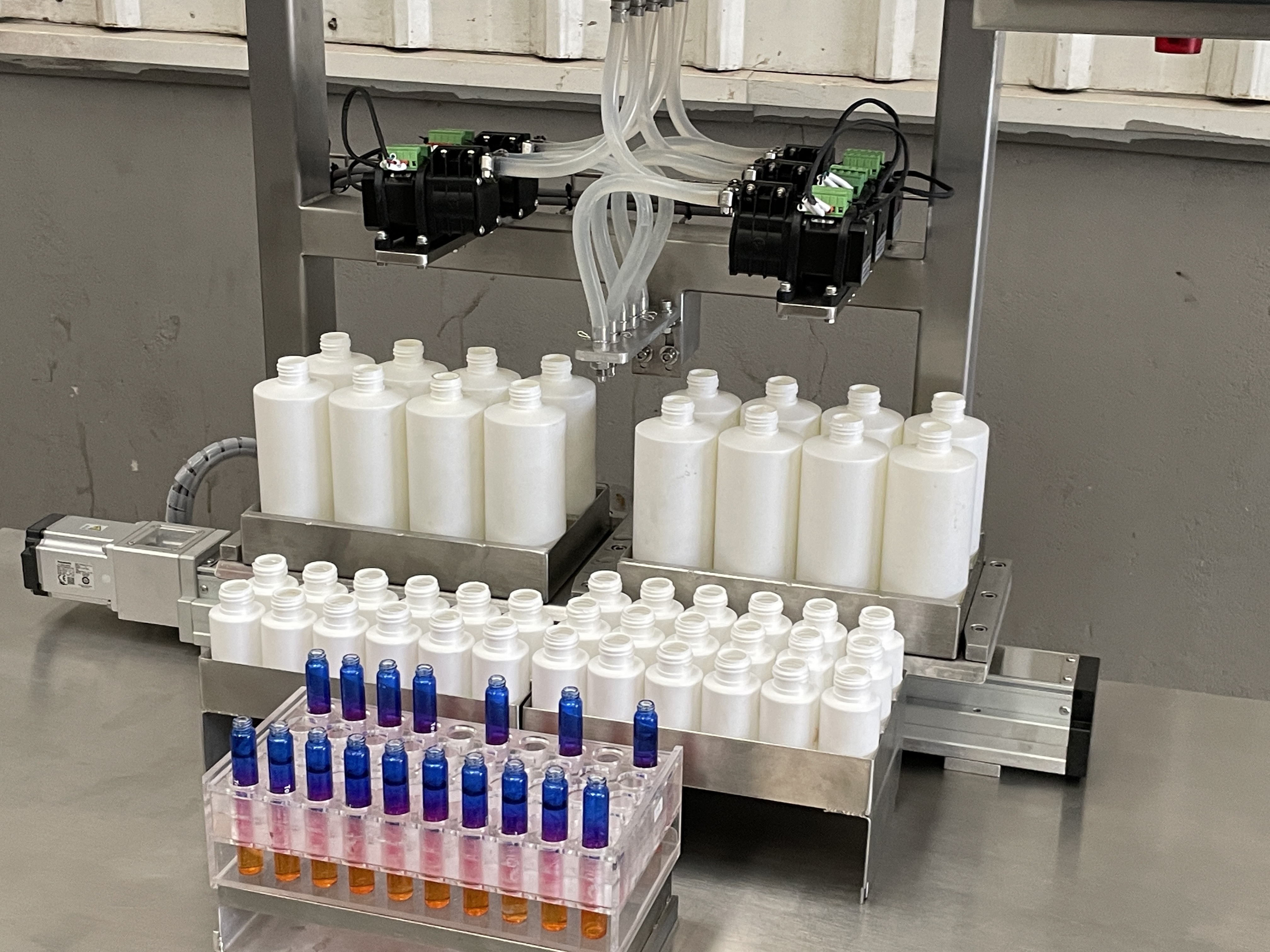

The machine can fill different types of bottles from 10ml to 300ml, according to clients requirement.

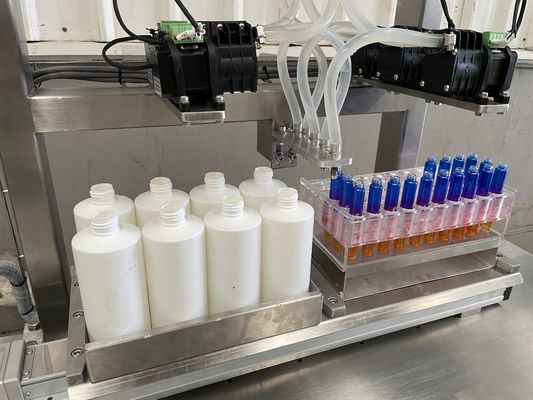

The machine can fill from both sides, after one tray is completed filled, the operate take off the filled tray, and place another empty tray on the other side for continuous filling.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 10

Liquid collection/storage hopper

1. Equipped with a S304 liquid storage hopper.
2. Once the hopper is empty, operator manually pour more material in
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 12

Stand-alone machine

1. Easy to use, multi functional, multi bottles
2. Easy to move
3. Cost saving
Specification
Automatic Grade
Semi-automatic
Power
380/440V 50/60Hz
Air pressure
0.4-.0.6Mpa
Filling Accuracy
0.2%FS
Filling type
Peristaltic pump
Functions
1 machine for multi bottles
Material
SS304/SS316
Container
Small bottles
Filling range
10ml 60ml 300ml
Filling products
Liquids
Filling speed
800-2000bph
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 14
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 16

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 18
3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 20
4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 22
1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 24
2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 26
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 28
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 30
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 32
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 34
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 36
ISO 9001 Certificate
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 38
ISO 14001 Certificate
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 40
ISO 45001 Certificate
300ml Semi-Automatic Small Bottle Filling Machine with 1000bph High Speed and 800-2000bph Capacity 42
F&Q
1. When was Daesum first established? Where is our factory located at?
- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.
2. What kind of product do you provide?
- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.
3. Can you do explosion proof filling machines?
- Yes
4. What kind of service can you provide?
- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.
5. Where can you export?
- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.
6. If we need maintenance or meet problem, how could you help?
- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.
7. What kind of package would you use?
- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.
- For spareparts, we usually send by air express with boxes.
