Shanghai Daesum Science Instrument And Equipment Co., Ltd.
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | Daesum |
| Minimum Order Quantity: | 1 |
| Application: | Chemical | Packaging Type: | Drums |
|---|---|---|---|
| Packaging Material: | Plastic, Other | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V, 415V, 380V, 400V, 440V |
| Dimension(l*w*h): | Adjustable As Per Client Request | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate, Low Noise Level, High-accuracy, Long Service Life | Filling Material: | Oil, Liquid, Chemical |
| Filling Accuracy: | ±0.2%FS | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Core Components: | Motor, PLC, Gear, Bearing, Gearbox, Engine, Other |
| Filling Nozzle: | 1, 2, 4 | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Online Support, Engineers Available To Service Machinery Overseas |
| Weight (KG): | 5000 | Filling Volume: | 200L |

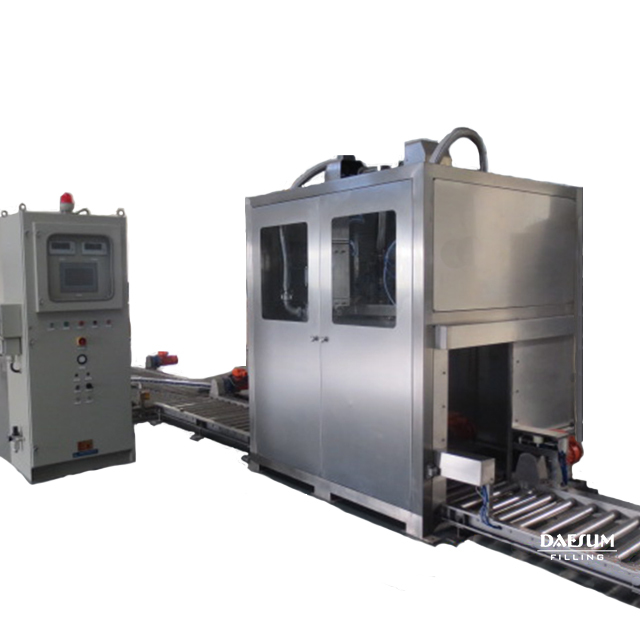

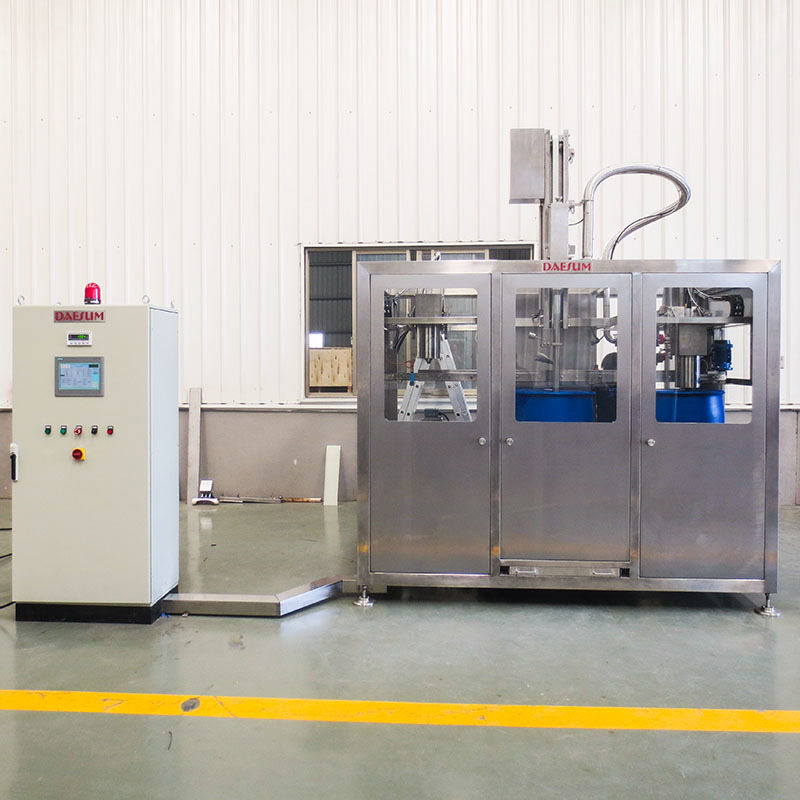

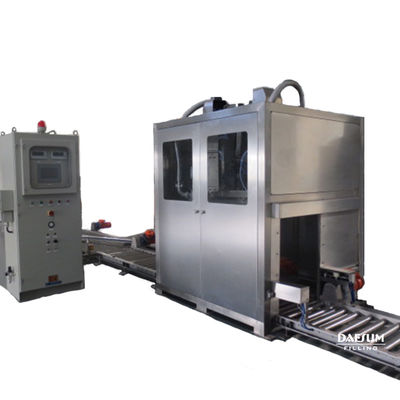

| Application: | Medical | Name: | 200L Drum Quantitative Auto Liquid Filling Machine |
| Filling Capacity: | 35-150 Drums/hr | Accuracy: | 0.1-0.2% FS |
| Internal Value: | 100g | Filling Type: | Quantitative Filling |
| Maximum Weighing Capacity: | 300kg | Filling Container: | 200L Standard Drum |
| Filling Product: | Chemical/ Adhesive/ Oil/ Mobil Oil | ||
| Highlight: | 200L electric liquid filling machine,single-head PLC filling machine,auto quantitative beverage filling machine |
||
The product contacting pipe and filling valve are made of S304. The filling nozzle uses internal-type metal-sealed bottom valve and compression-type Teflon packing shaft seal, which ensures zero dripping and long endurance. Filling is controlled by two-stage product infeed valve, with fast and slow filling combination valve in the front and manual slow filling adjustment valve, which ensures high filling accuracy.

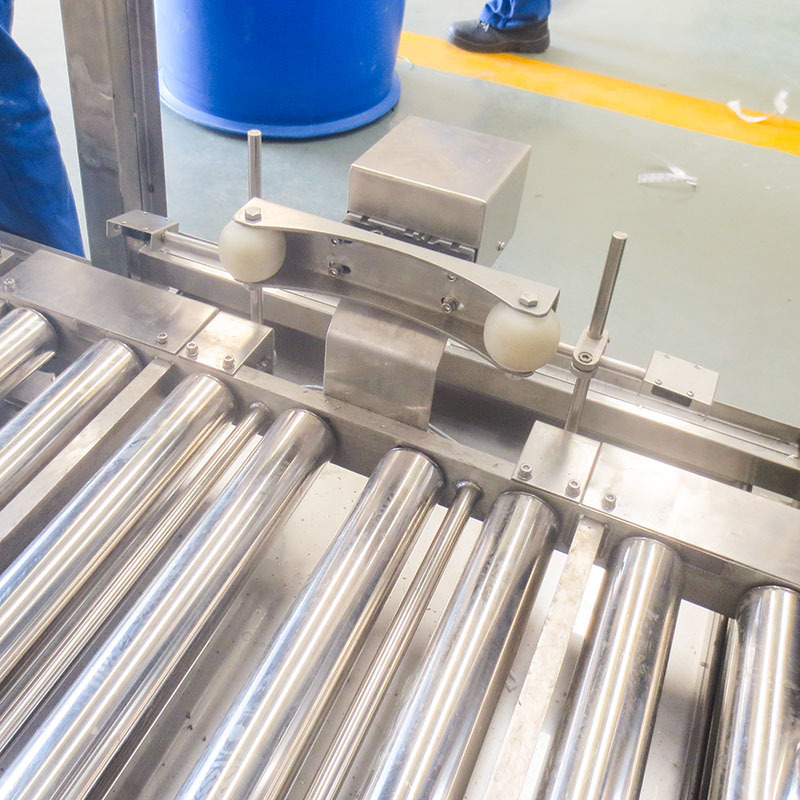

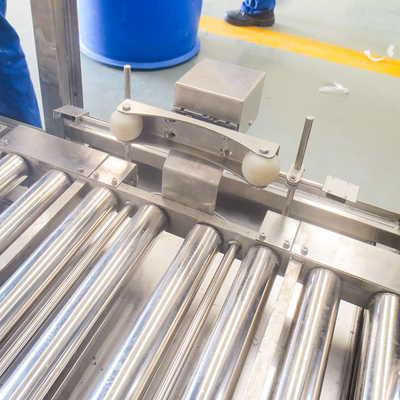

In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.
TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.
Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level ±0.2% FS (dynamic)
Working ambient temperature －10℃～45℃
Product supply pressure 0.1—0.3Mpa (stable)
Air supply pressure 0.6—0.7Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 8kw
Control method auto/ manual operation by adjusting the option switch
Ex-proof level optional
Protection level better than IP55
Filling container 200L standard steel drum
Filling type quantitative below-bunghole
Filling product adhesive/ oil/ chemical/ liquid
The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

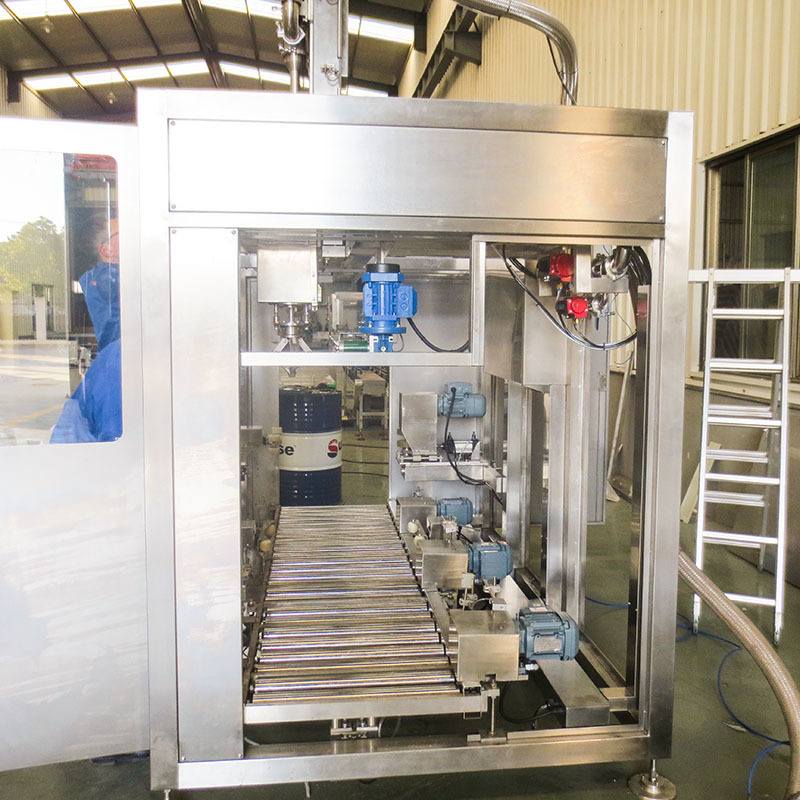

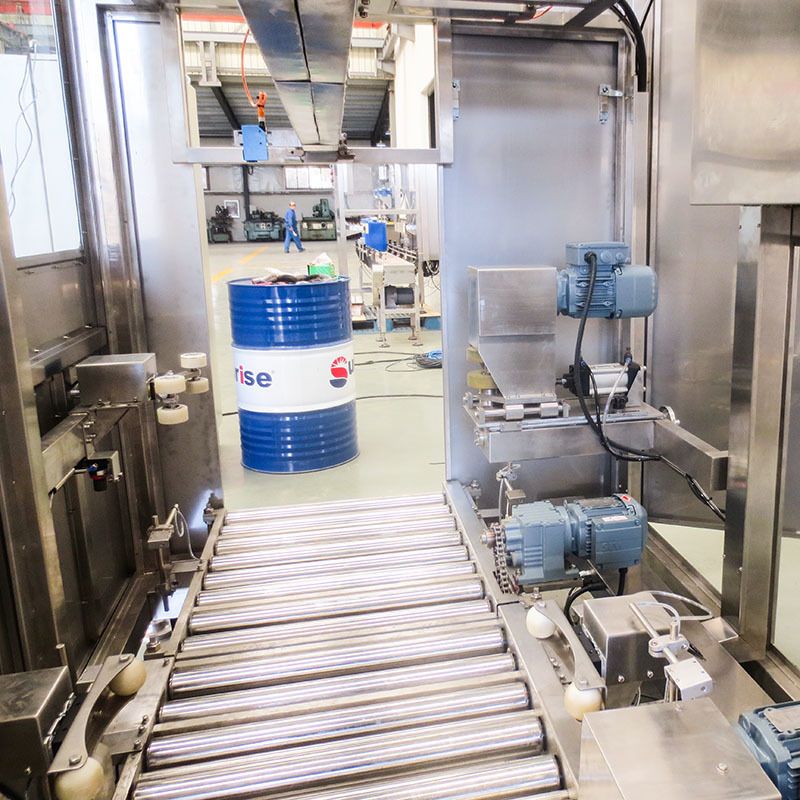

The filling machine has 3 working stations, with the first and the third performing automatic debunging and capping and sealing function. When the empty drum arrives at the first station, the decapping and debunging machine would take unseal the cap from the drum and place it to the belt conveyor behind the drum. After filling, when the filled drum arrives at the third station, the sealing machine would take the cap just unsealed from the belt conveyor and then seal the drum. The system complete the whole process from uncap, filling, sealing to palletizing, which largely improves the level of automation and save the labor furthest.
1. Caltex Shanghai: 1 set of 200L multiple filling nozzle filling line
2. China Donghao Oil: 1 set of 8 filling ports(exchangeable) filling line
3. France Rhodia (zhangjiagang) Pty., Ltd: 2 sets of 200L automatic explosion-proof filling palletizing line.
