200L Single Automatic Oil Liquid Drum Filling Sealing Machine Electric Gear Motor Energy Saving PLC Bearing for Chemical

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	Daesum

Minimum Order Quantity:	1

Get Best Price Contact Now

Application:	Chemical, Food	Packaging Type:	Drums
Packaging Material:	Plastic, Metal	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V 50Hz
Dimension(lwh):	Adjustable As Per Client Request	Warranty:	1 Year
Key Selling Points:	High-accuracy, Energy Saving, Long Service Life	Filling Material:	Oil, Juice, Other, Liquid
Filling Accuracy:	±0.2%FS	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Gear, Bearing, Gearbox, Engine, Other
Filling Nozzle:	2, 1, 4	After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support
Weight (KG):	8000	Filling Volume:	200L
Name:	200L Single Head Automatic Oil Liquid Drum Filling Sealing Machine	Filling Capacity:	40 Drums/hr
Accuracy:	0.1-0.2% FS	Internal Value:	100g
Ambient Temperature:	-10℃~45℃	Maximum Weighing Capacity:	300kg
Filling Container:	200L Standard Drum	Filling Product:	Motor Oil/ Engine Oil/ Mobil Oil
Filling Type:	Below-bunghole Filling	Control Method:	Auto/semiauto
Highlight:	200L drum filling machine electric , automatic drum sealing machine PLC , oil liquid filling machine energy saving

Product Description

200L single head automatic oil liquid drum filling sealing machine

1. Introduction

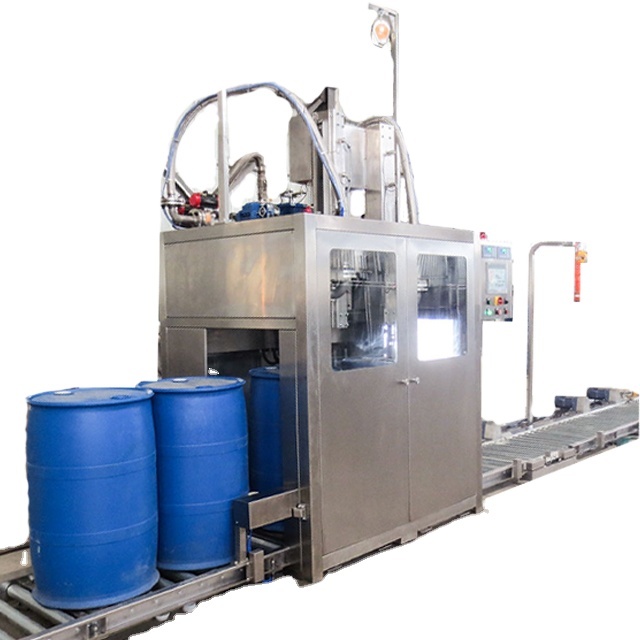

GZ200-1CS single head automatic drum filling sealing machine is appropriate for 200L standard drum below-bunghole filling for normal viscosity liquid product. The fully automatic filling line can automatically perform empty drum infeed, positioning, bunghole positioning, unsealing and de-bunging, dosing filling, capping and sealing, filled drum outfeed and palletizing with auto filling circulation and error proofing interlock. And in the meanwhile, all the operation process can be done manually, which contributes to easy commissioning and dealing with special situation when onsite.The GZ200-1CS filing line employs gravimetric type dosing net filling, conducing to high accuracy and easy container/weight conversion.

2. Filling nozzle

The product contacting pipe and filling valve are made of S304. The filling nozzle uses internal-type metal-sealed bottom valve and compression-type Teflon packing shaft seal, which ensures zero dripping and long endurance. Filling is controlled by two-stage product infeed valve, with fast and slow filling combination valve in the front and manual slow filling adjustment valve, which ensures high filling accuracy.

3. Interlock security system

In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.

4. Weighing system

TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.

5. Roller conveyors

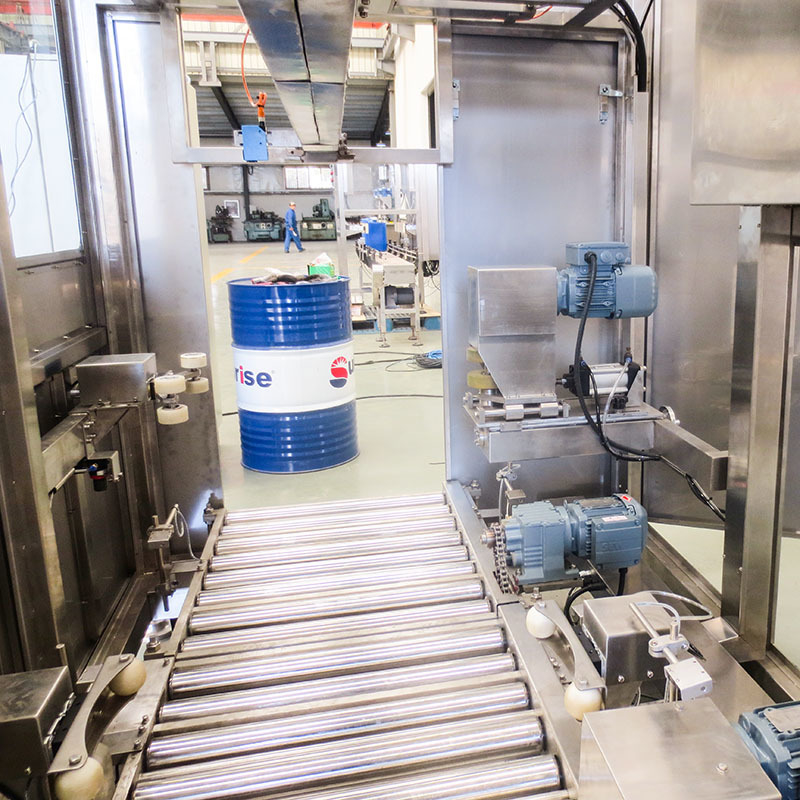

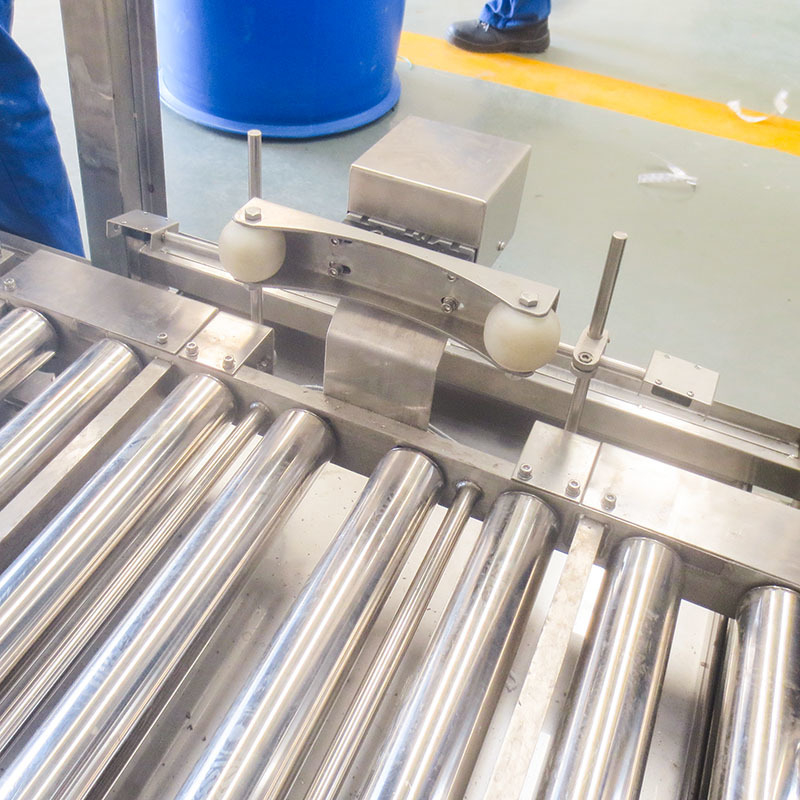

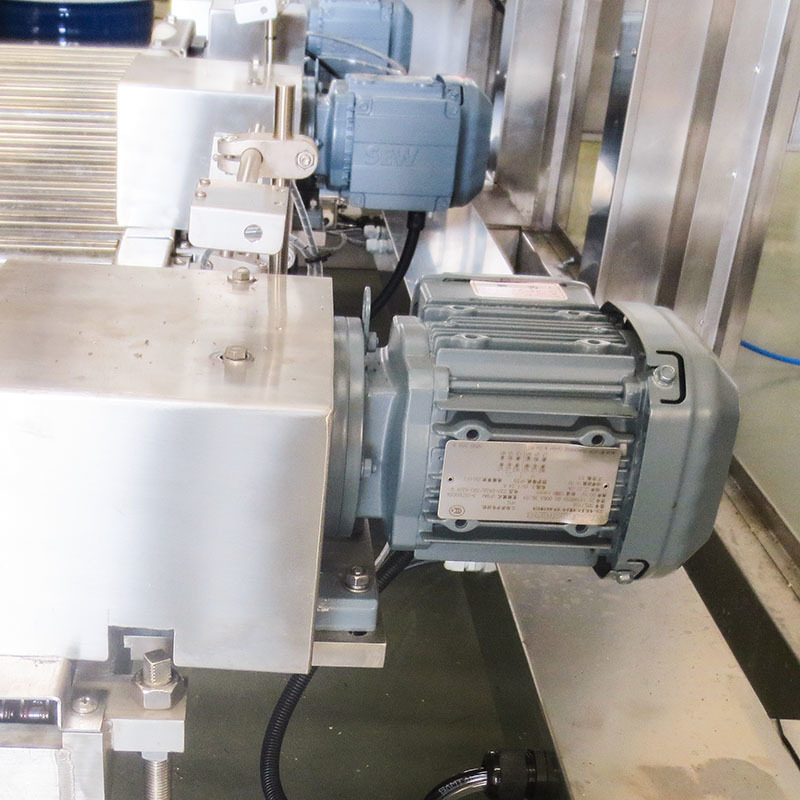

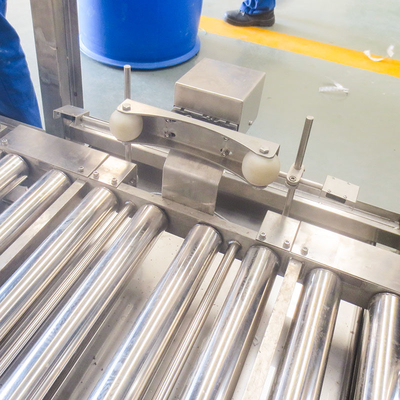

There are 4 parts of roller conveyors used in the system: empty drum infeed, weighing, filled drum outfeed, and filled drum wait-shovel. Apart from the filled drum wait-shovel roller conveyor, all the other roller conveyors used are power roller conveyors equipped with ex-proof motor and reduction gears. All the rollers are kept within 10cm high, improving easy and safe operation.

Technical Parameters

Maximum weighing capacity 300kg
Filling capacity 50-300kg/drum
Division value 100g
Accuracy level 0.2% FS (dynamic)

Working ambient temperature －10℃～45℃
Product supply pressure 0.1—0.3Mpa (stable)
Air supply pressure 0.6—0.7Mpa (clean and dry)
Power supply AC380V, 3 phase, 50Hz
Consumed power about 8kw
Control method auto/ manual operation by adjusting the option switch
Ex-proof level D2BT4
Protection level better than IP55

Filling container 200L standard steel drum

Filling type below-bunghole

Filling product oil/ motor oil/ engine oil/ mobil oil/ lube oil/ lubricant

Peripheral Equipment

1. Palletizing system

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.

2. Capping and Sealing system

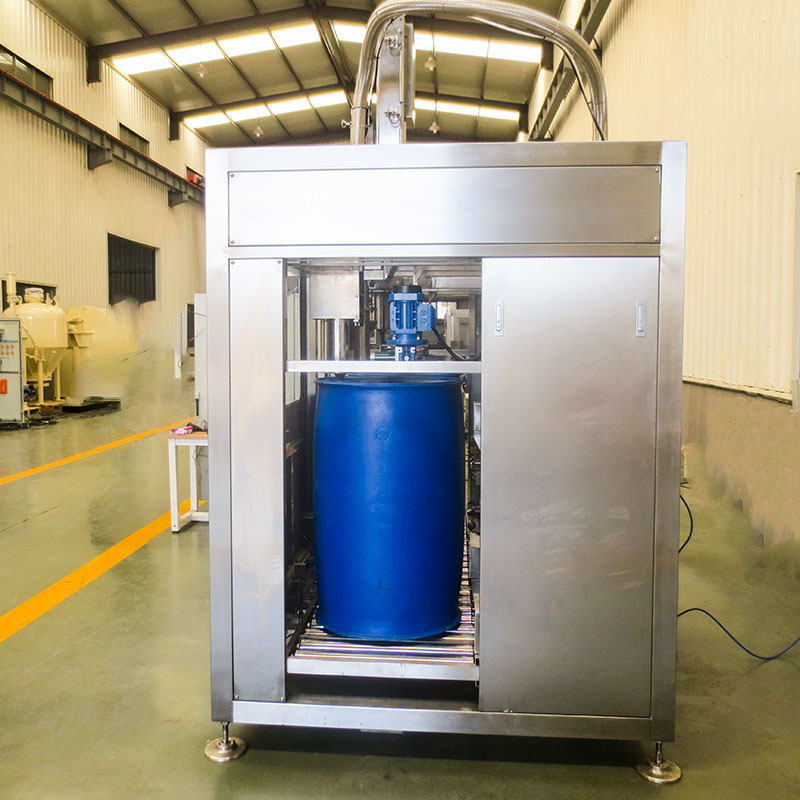

The filling machine has 3 working stations, with the first and the third performing automatic debunging and capping and sealing function. When the empty drum arrives at the first station, the decapping and debunging machine would take unseal the cap from the drum and place it to the belt conveyor behind the drum. After filling, when the filled drum arrives at the third station, the sealing machine would take the cap just unsealed from the belt conveyor and then seal the drum. The system complete the whole process from uncap, filling, sealing to palletizing, which largely improves the level of automation and save the labor furthest.
