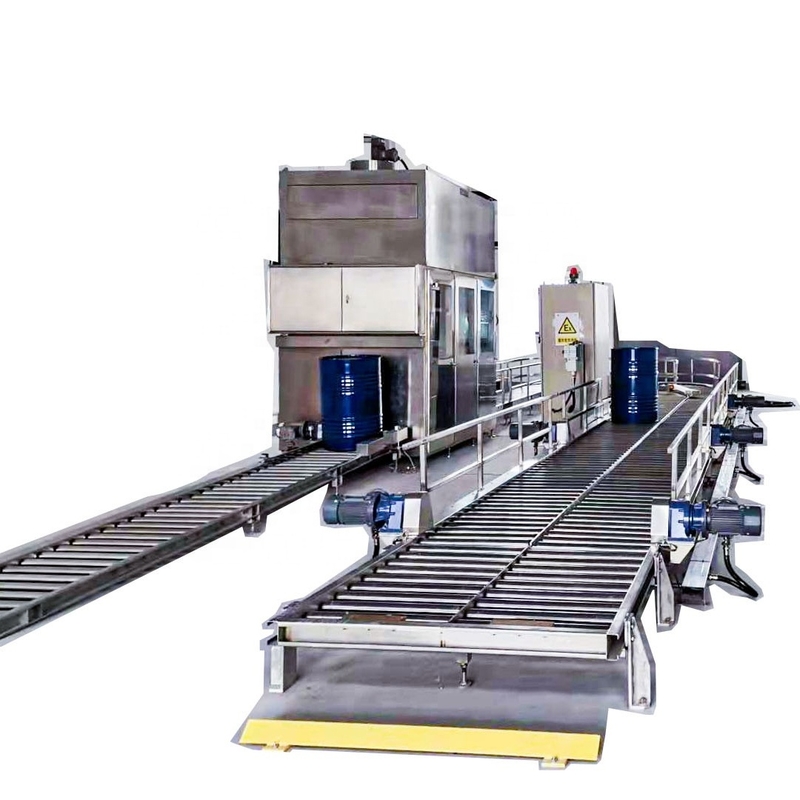

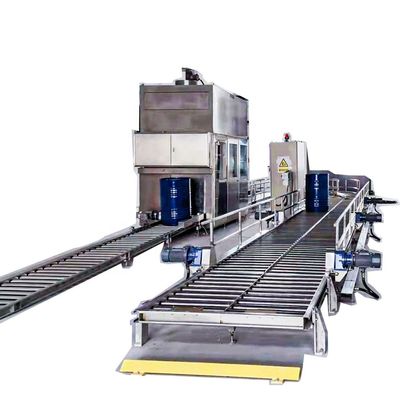

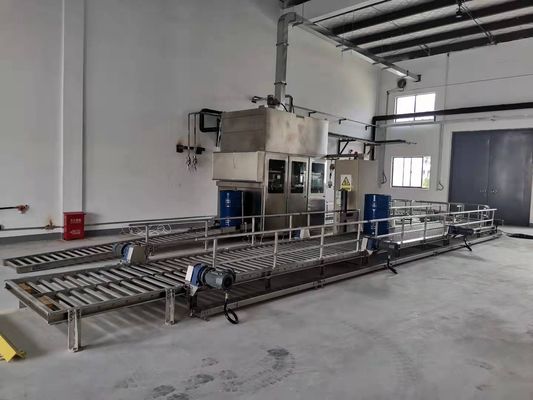

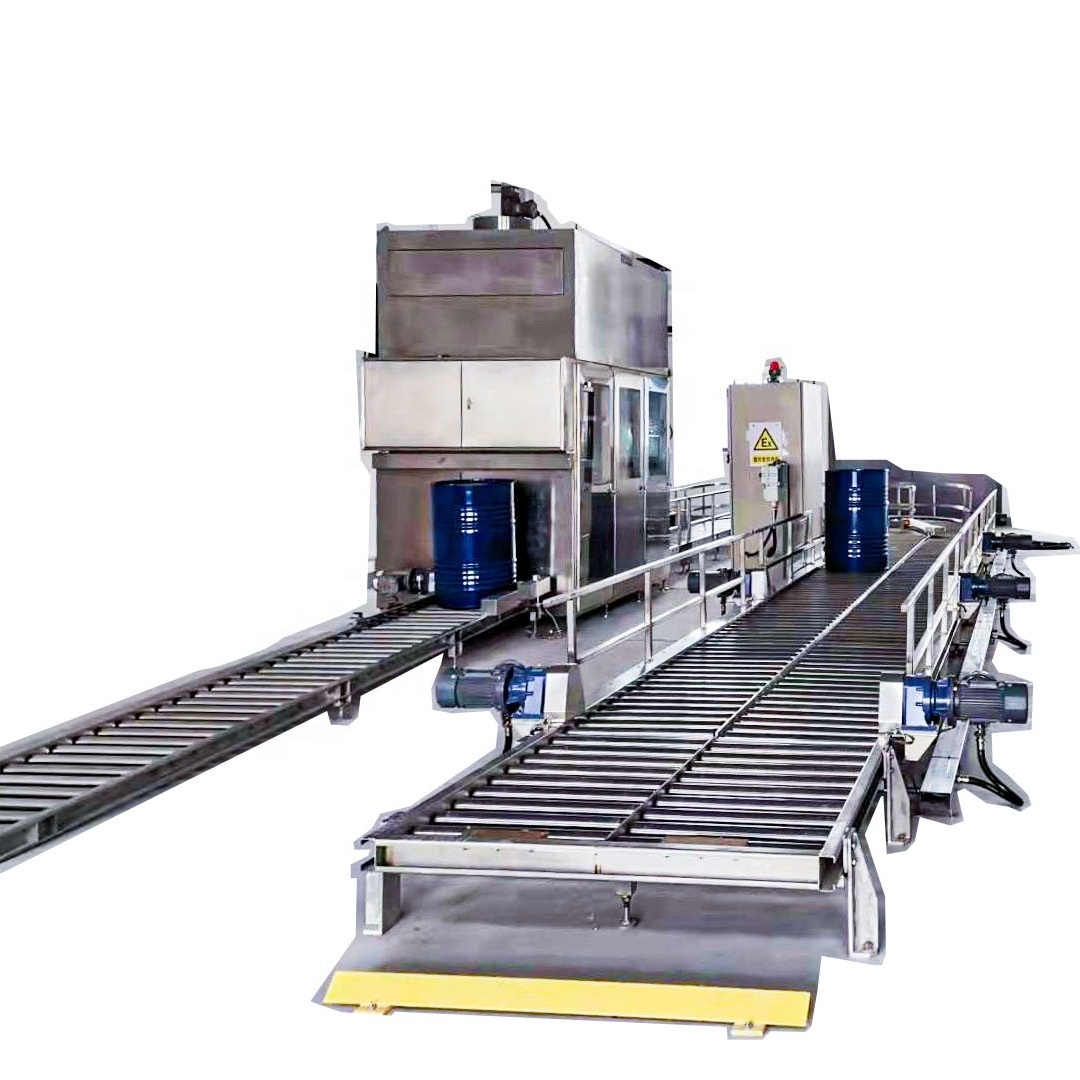

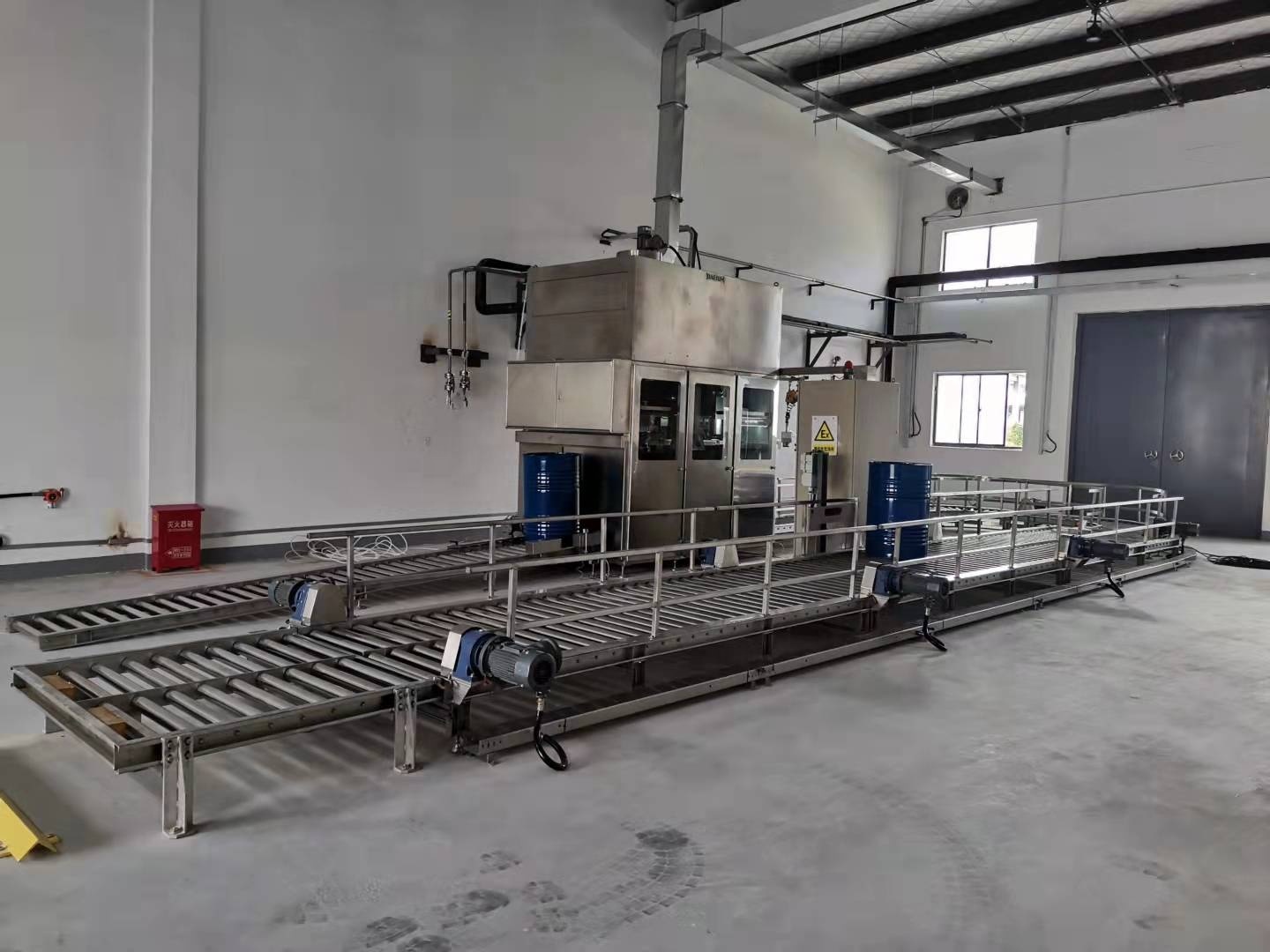

200L 1-nozzle Drum Fully Automatic Lubricant Oil Chemical Liquid Filling Capping Palletizing Machine Filler

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	Daesum

Minimum Order Quantity:	1

Get Best Price Contact Now

Machinery Capacity:	400BPH, 100BPH, 200BPH, 40BPH	Application:	Chemical, Liquid
Packaging Type:	Barrel	Packaging Material:	Plastic, Metal, Wood
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	Adjusted According To Actual Situation	Dimension(lwh):	Adjusted According To Actual Situation
Warranty:	1 Year	Key Selling Points:	Automatic
Filling Material:	Other, Oil, Juice, Liquid	Filling Accuracy:	±0.2%FS
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Motor, Other, PLC, Gear, Bearing, Gearbox, Filling Nozzle	Application:	Chemical/Medical/Oil
Name:	Drum Automatic Oil Chemical Liquid Filling Machine Filler	Style:	Above Liquid Surface
Certificate:	ISO9001 ISO14001 ISO45001	Main Material:	SS304/SS316/PTFE
Ex-proof:	IIBT4/IICT4	Bottle Type:	60-200L
Capacity:	40-160bph	Type:	Filling Machine
Condition:	New	Applicable Industries:	Building Material Shops, Manufacturing Plant, Farms, Construction Works , Other
Showroom Location:	None	Warranty Of Core Components:	1 Year
Weight:	1500 KG
Highlight:	200L drum filling machine , automatic lubricant oil filler , chemical liquid capping machine

GZ200-D 200L Drum Fully Automatic Chemical Liquid Filling Machine Ex-proof

Equipment Description

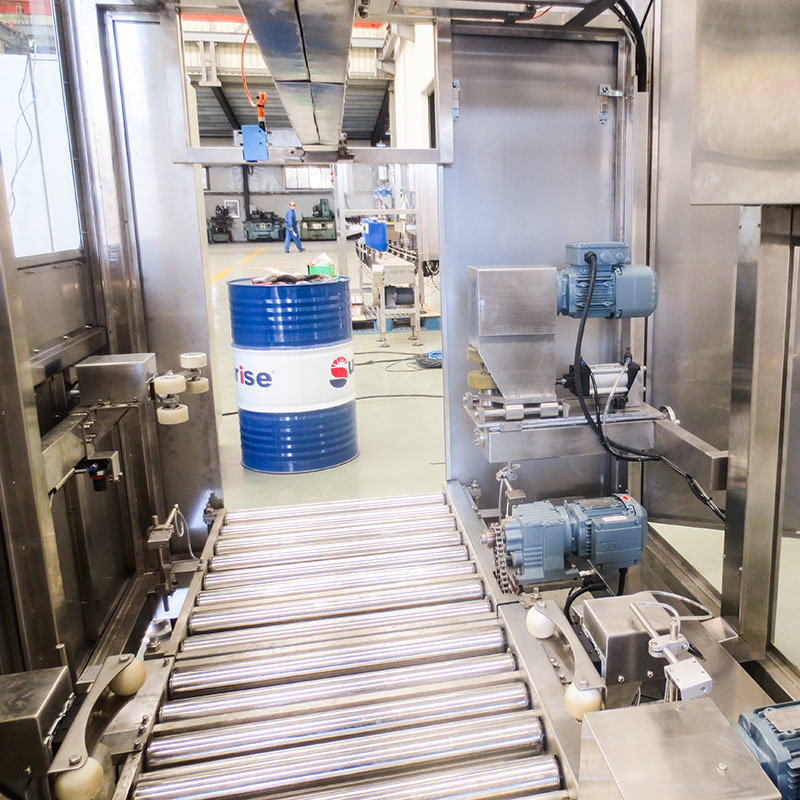

GZ200-1D is able to realize the automation of manual drum upload, auto drum infeed, auto bunghole positioning, auto cap loosening,
auto quantitative filling, auto capping, auto capping inspection, and auto heavy drum outfeed. D series realize nozzle positioning
with the combination of electromechanical and visual tech.

When the empty drums reaching cap loosening station, the equipment finish positioning and cap loosening, and after heavy drums reaching capping station, the equipment finish capping and visually inspect whether drums are capped correctly. D series are highly automatic, usually equipped with cap organizer, labeler and palletizer, thus occupying more area with long conveyors. Ex-proof motor, air extraction equipment, labeler, palletizer and wrapper are optional.

Winding and wrapping machine

1.Can be equipped with a wrapping machine

2.Can be applicable in ex-proof environment

3.Capacity: 9-12 pallets per hour

Drum Palletizer

1.Can be equipped with drum palletizer

2.Can choose 1 gripper, 2 grippers and 4 grippers palletizer

3.Mechanical palletizer can be applicable in ex-proof environment

Specification

Automatic Grade	Semi/Fully Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-.0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	300kg
Interval	10g
Material	SS304/SS316
Container	Drum/Large barrel
Filling range	60-220L
Filling products	Liquids
Filling speed	40-160bph

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.

3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine

4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.

1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.

2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

F&Q

1. When was Daesum first established? Where is our factory located at?

- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

2. What kind of product do you provide?

- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.

3. Can you do explosion proof filling machines?

- Yes

4. What kind of service can you provide?

- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.

5. Where can you export?

- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.

6. If we need maintenance or meet problem, how could you help?

- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.

7. What kind of package would you use?

- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.

- For spareparts, we usually send by air express with boxes.
